PTS200 Max 100W 0.96inch OLED Display Intelligent Soldering Iron ESP32 Open Source Soldering Pen Type-C Interface Support PD2.0/3.0 Charging Protocol with Auto Sleep Function Type-C interface design, 5/12/20V source and charging pal can be used as supplies, with a maximum output of 100W, and a temperature of 100-450 can be controlled. housing is made of aluminum alloy material, treated with an anodic oxidation process, body is solid and reliable and has a nice heat dissipation effect. And it is fixed with high-precise thread without screws. Compact structure, comfortable grip, ergonomic, and quite a sense of technology. Adopting an intelligent temperature control chip, it can accurately control frequency of current and voltage to realize constant temperature and pressure. Internal ceramic welding nozzle, fast heating, stable temperature, and long service lifespan. soldering iron is designed for PD2.0/PD3.0 protocol and easily supports 65W. When using a 100W powersupply, working can also reach 100W. (Need to be used with a customized iron bit, standard iron bit can only reach to 65W). With vibrations sensing function. Built-in high-precise gyroscope in body, with software algorithm to realize high sensitivity auto- function. Support for Chinese and English switching and USB firmware upgrade functions. With a 0.96-inch OLED screen, it can display rich content. Built-in three physical buttons with temperature control and a one-button temperature rise function. Adopting ESP32 MCU, it can intelligently sense your usage habits through complex calculations. A total of 3 types of soldering iron tips are available (BC2, K, I), and you can choose according to your usage needs.<br><br>Operating Instructions:<br>In soldering iron bit setting interface, you can add a new soldering iron bit, switch soldering iron bit, delete soldering iron bit, rename current soldering iron bit, as well as calibrate current temperature curve of soldering iron bit by using multi-stage calibration function.<br>In temperature setting interface, you can set set temperature, dormant temperature and temperature increment respectively.<br>In timer setting interface, you can specify time, temperature rise time, and turn off heating time of iron bit. Wake- threshold: setting of hibernation sensitivity, smaller value, higher sensitivity.<br>In main screen setting interface, you can switch display mode of large font or more information.<br>In information option interface, you can display working status of soldering iron and firmware version information.<br>You can restore soldering iron to factory state in Restore Default Settings.<br>You can switch interface language between Simplified Chinese, Traditional Chinese and English in Interface Language Setting.<br><br>Specifications:<br>Resistance value of soldering iron bit: 2<br>Soldering bit: BC2, K, I (optional)<br>Temperature control ranges: 100-450<br>Maximum output : 65W or 100W (depending on powersupply and iron bit you use)<br>Package weight: 150g / 5.29ounce<br>Material: aluminum alloy<br>Temperature stability value: ±5%<br>Input voltage: 5V, 2A; 12 V, 1.5A; 20V, 3.25A; 20V, 5A<br>Package size: 160 * 80 * 50mm / 6.30 * 3.15 * 1.97in<br>and data interface: Type-C<br>Name: Soldering Iron<br>Display: 0.96-inch OLED display<br><br><br> PTS200 intelligent soldering iron is powered by a 5/12/20V source or charging pal with a maximum output of 100W and a controllable temperature of 100-450 via Type-C connector. housing is made of aluminum alloy material and fixed with high-precise threads without screws. structure is compact, ergonomic, and quite technological. A total of 3 types of soldering iron tips are available (BC2, K, I), you can choose according to your usage needs. With vibrating sensing and auto function. Support Chinese and English switching and USB upgrade firmware.<br><br>Packing List:<br>1 * Soldering Bit<br>1 *

• Premium Material: The housing is made of aluminum alloy material, treated with an anodic oxidation process, the body is solid and reliable and has a nice heat dissipation effect. And it is fixed with high-precise thread without screws. Compact structure, comfortable grip, ergonomic, and quite a sense of technology.

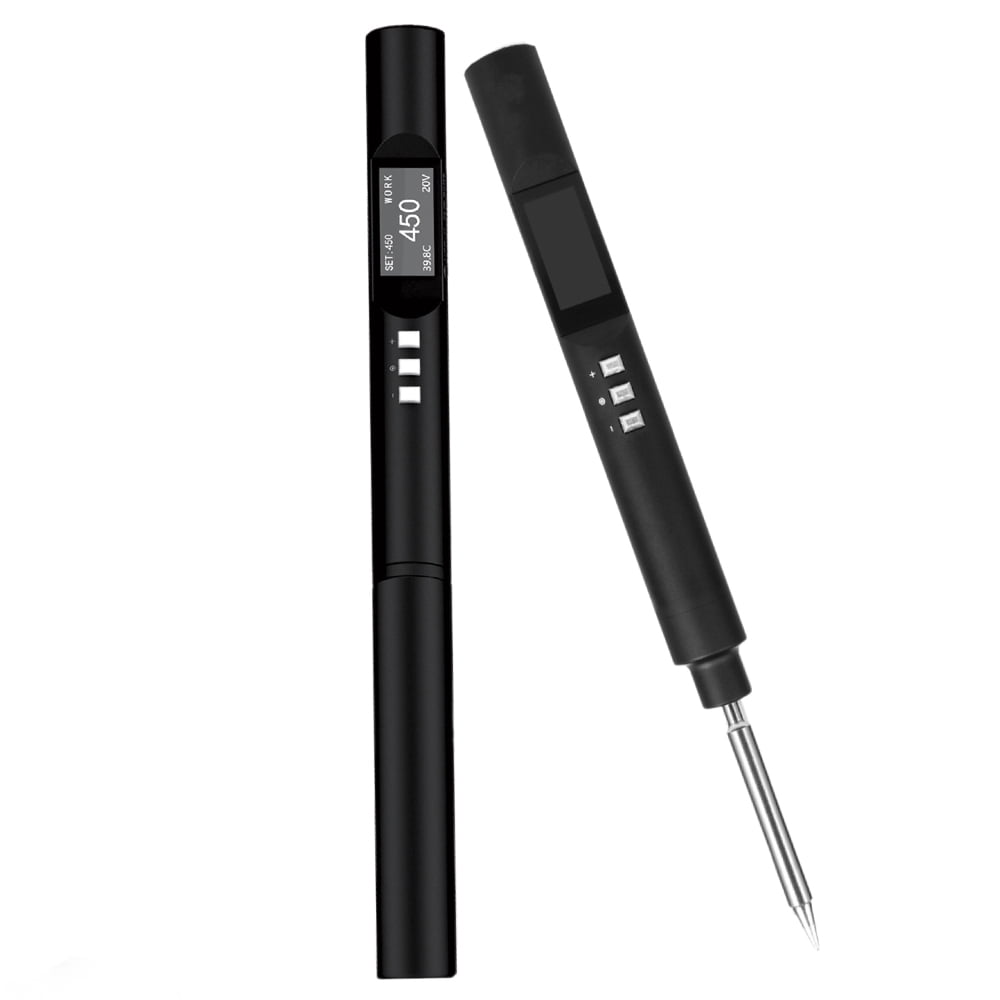

• Easy to Use: With a 0.96-inch OLED screen, it can display rich content. Built-in three physical buttons with temperature control and a one-button temperature rise function. Adopting ESP32 MCU, it can intelligently sense your usage habits through complex calculations.

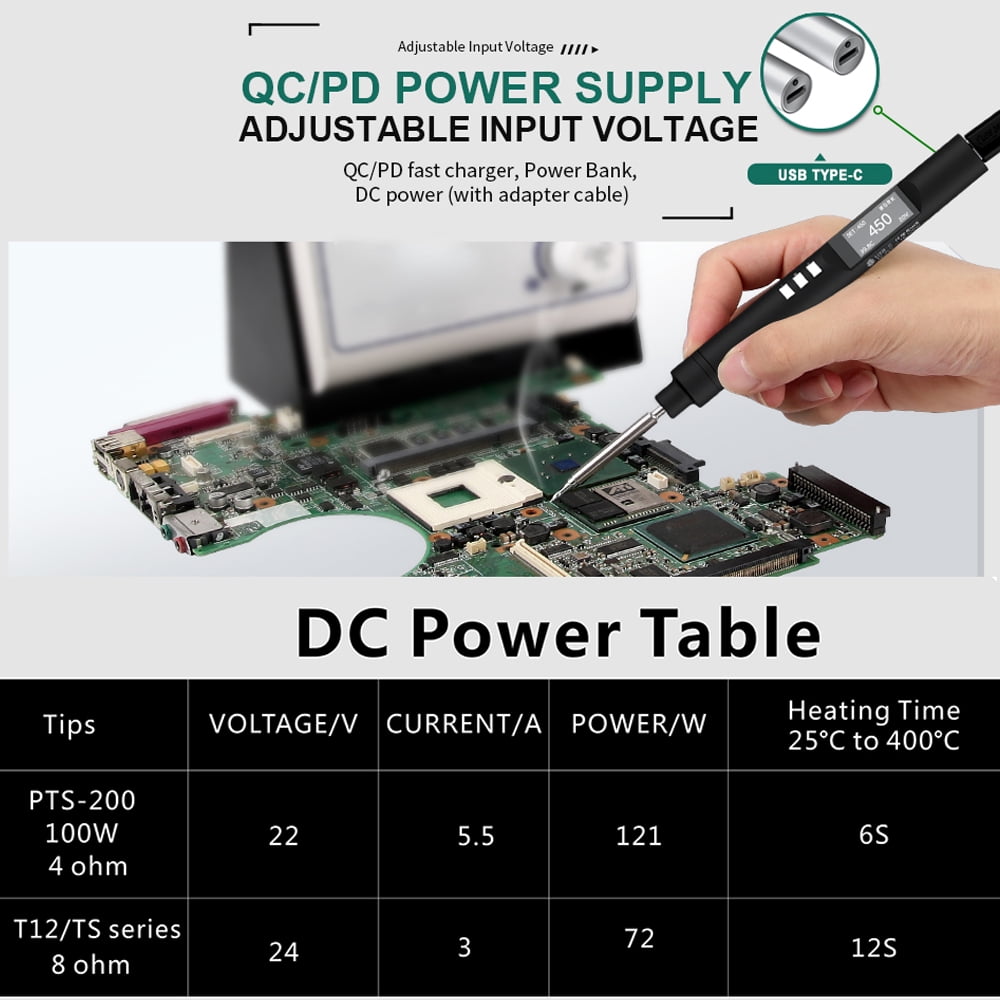

• Multiple Power Supplying Methods: Type-C interface design, the 5/12/20V power source and charging pal can be used as the power supplies, with a maximum output power of 100W, and a temperature of 100-450 can be controlled.

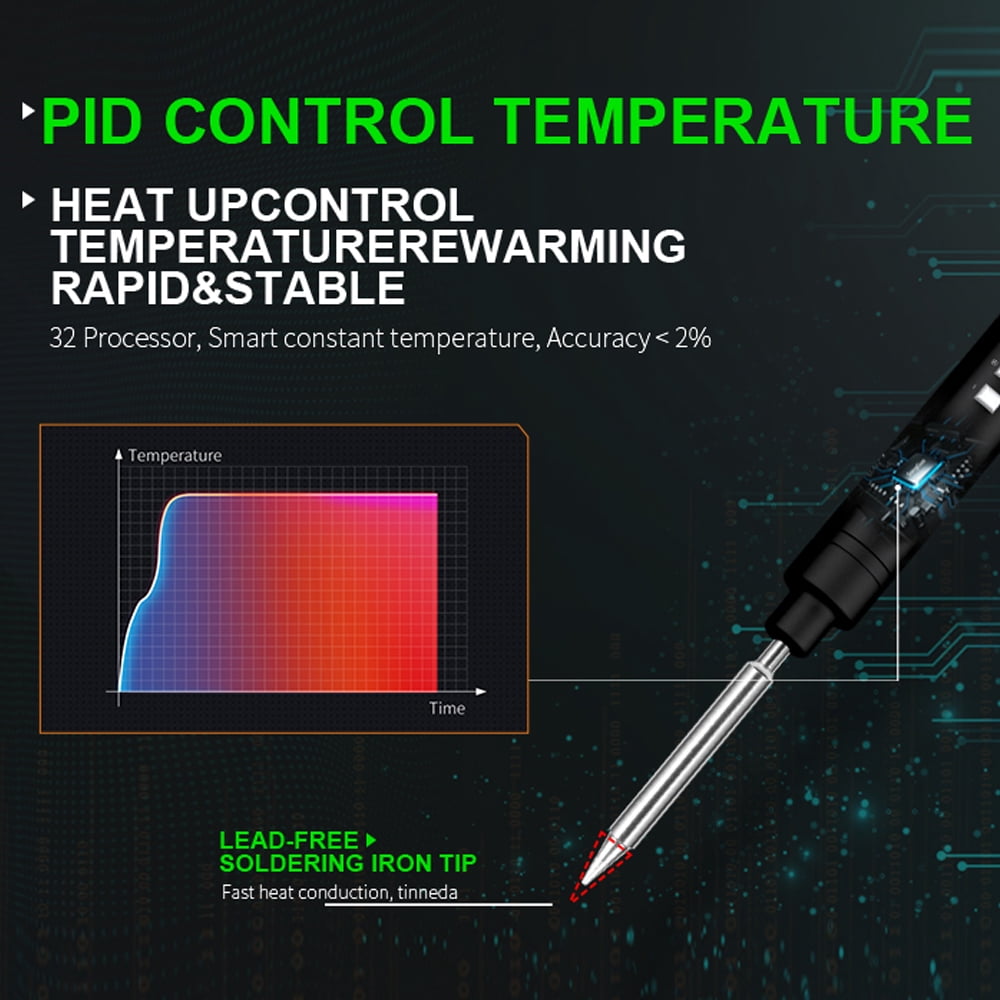

• Intelligent Constant Temperature & Fast Heating: Adopting an intelligent temperature control chip, it can accurately control the frequency of current and voltage to realize constant temperature and pressure. Internal ceramic welding nozzle, fast heating, stable temperature, and long service lifespan.

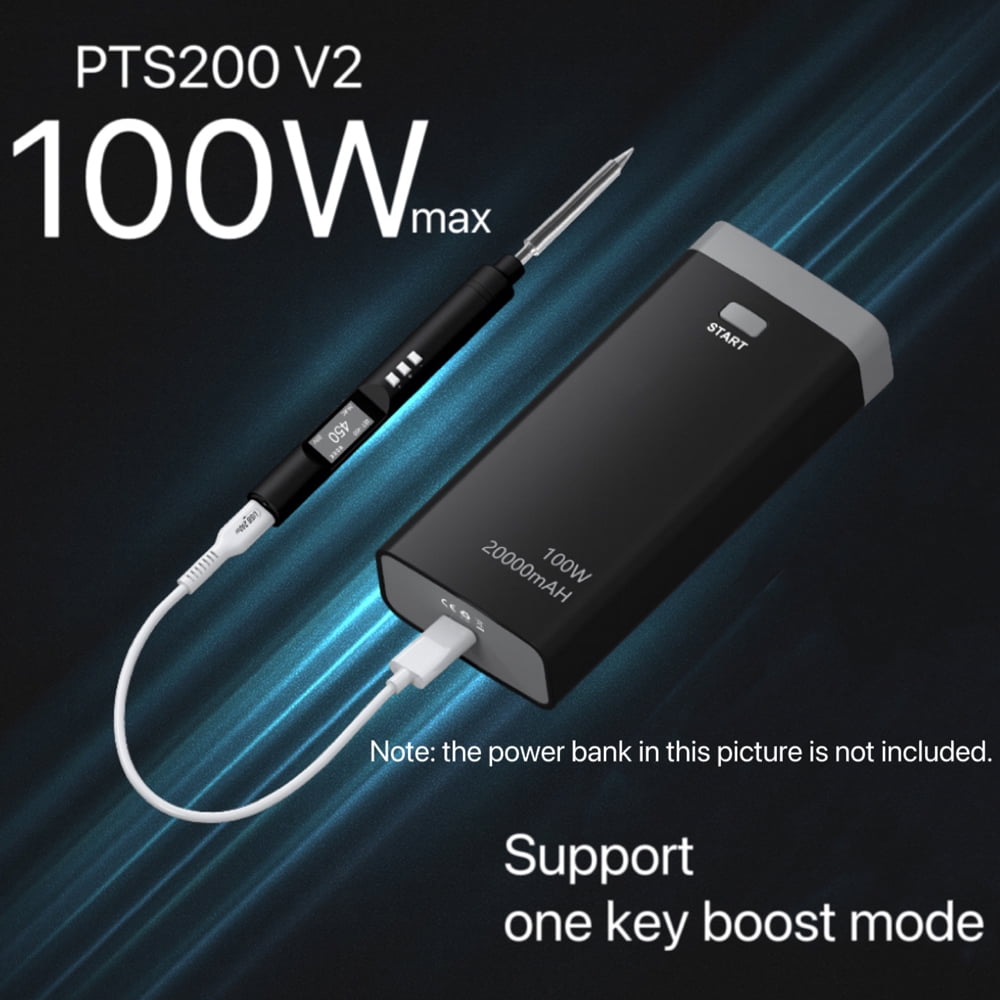

• Support PD2.0/PD3.0 Protocol: The soldering iron is designed for PD2.0/PD3.0 protocol and easily supports 65W. When using a 100W powersupply, the working power can also reach 100W. (Need to be used with a customized iron bit, the standard iron bit can only reach up to 65W).
