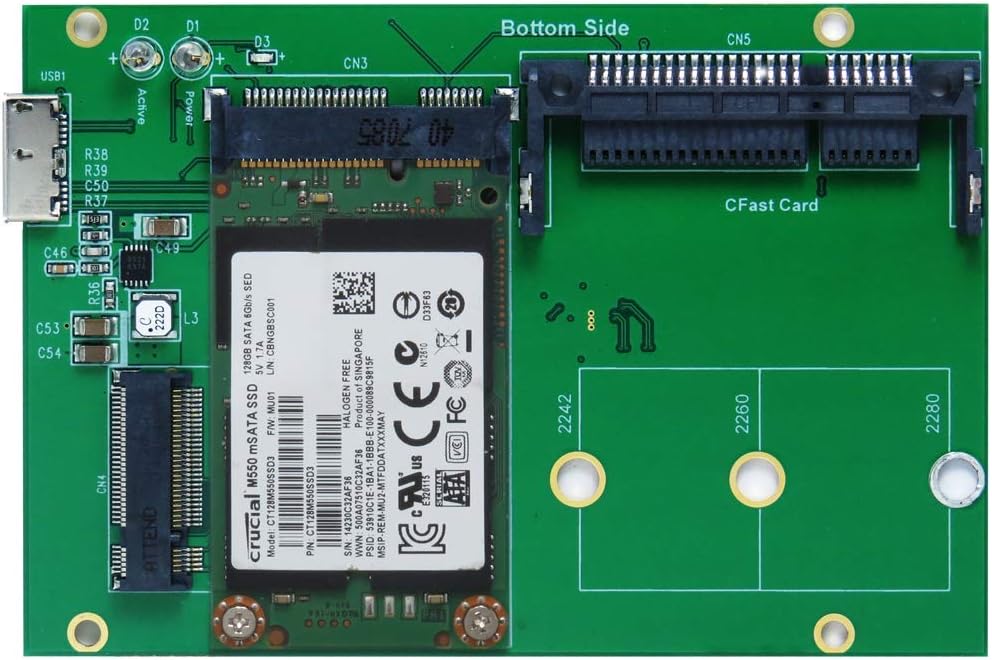

USB 3.1 Micro B to M.2 - mSATA - CFast Card Adapter

USB 3.1 Micro B to M.2 - mSATA - CFast Card Adapter Features : Build in ASM1351 USB3.1high performance processorBuild in Mini PCI-e Female connectorBuild in M.2 NGFF Female connectorBuild in CFast Female connectorPWM synchronous buck converter Power IC3A maximum output currentShort circuit protectionIn-rush current suppressionThermal shutdown protectionESD HBM (Human Body Mode)/2KVD2 Green LED on indicates CFast, or mSATA, or M.2 Power readyD1 Red LED Blinking indicates SSD active status Specifications : Compliant with USB 3.1 specification Revisionn 1.0Supports UASP and Mass Storage Class Overview REV 1.4Supports SATA REV 3.2Compliant with PCI Express M.2 Specification Version 1.0PCI Express Mini Card Electromechanical Specification 1.2 NOTE : CFast Card, or M.2 SSD or mSATA SSD, only one can work, M.2 SSD would be priority. Micro SATA Cables PN # APT-1328-MB

• This connector allows for high-speed data transfer rates of up to 10 Gbps, making it suitable for fast data retrieval and storage.
• Compatible with USB 3.0 and USB 2.0 ports, but at reduced speeds.
• The M.2 form factor is compact, making it ideal for space-constrained applications.
• Designed to accommodate mSATA drives, which are smaller SSDs that connect via a mini-SATA interface.
• Micro SATA Cables PN# APT-1328-MB
